CHAPTER 9: TIMING CLOSURE
USING NETLIST OPTIMIZATIONS TO ACHIEVE TIMING CLOSURE
168 ■ INTRODUCTION TO QUARTUS II ALTERA CORPORATION

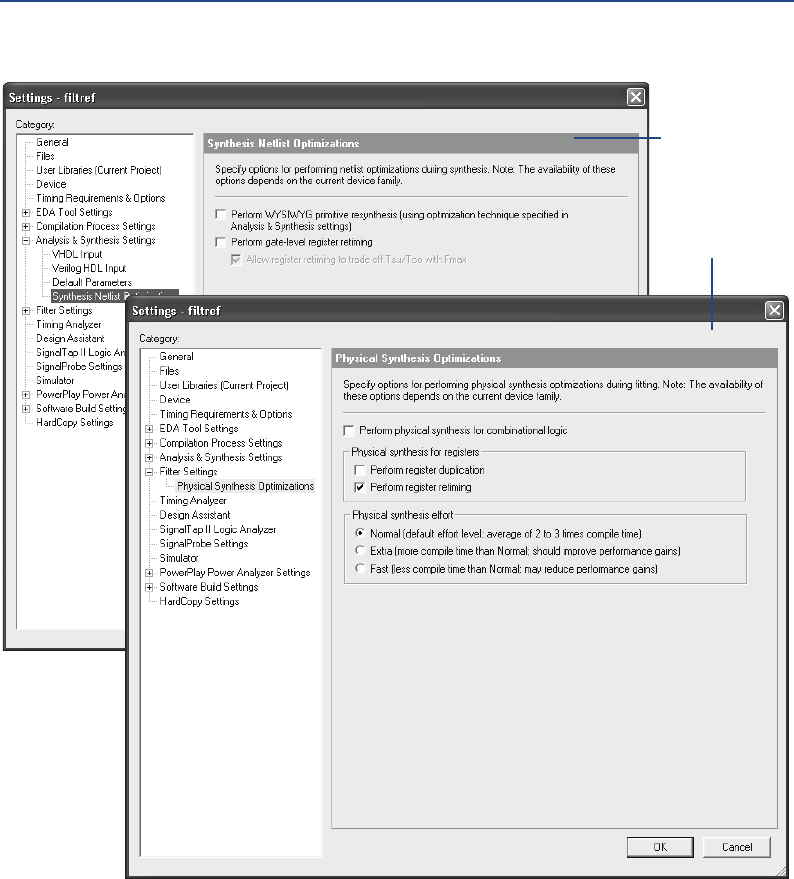

Figure 4. Netlist Optimizations
■ Allow register retiming to trade off Tsu/Tco with Fmax: Directs the
Quartus II software to move logic across registers that are associated
with I/O pins during register retiming to trade off t
CO
and t
SU
with
f
MAX
. When you turn on this option, register retiming can affect
registers that feed and are fed by I/O pins. If you do not turn on this
option, register retiming does not touch any registers that are
connected to I/O pins.
Synthesis Netlist
Optimizations
Physical Synthesis
Optimizations
