CHAPTER 5: PLACE & ROUTE
OPTIMIZING THE FIT
108 ■ INTRODUCTION TO QUARTUS II ALTERA CORPORATION

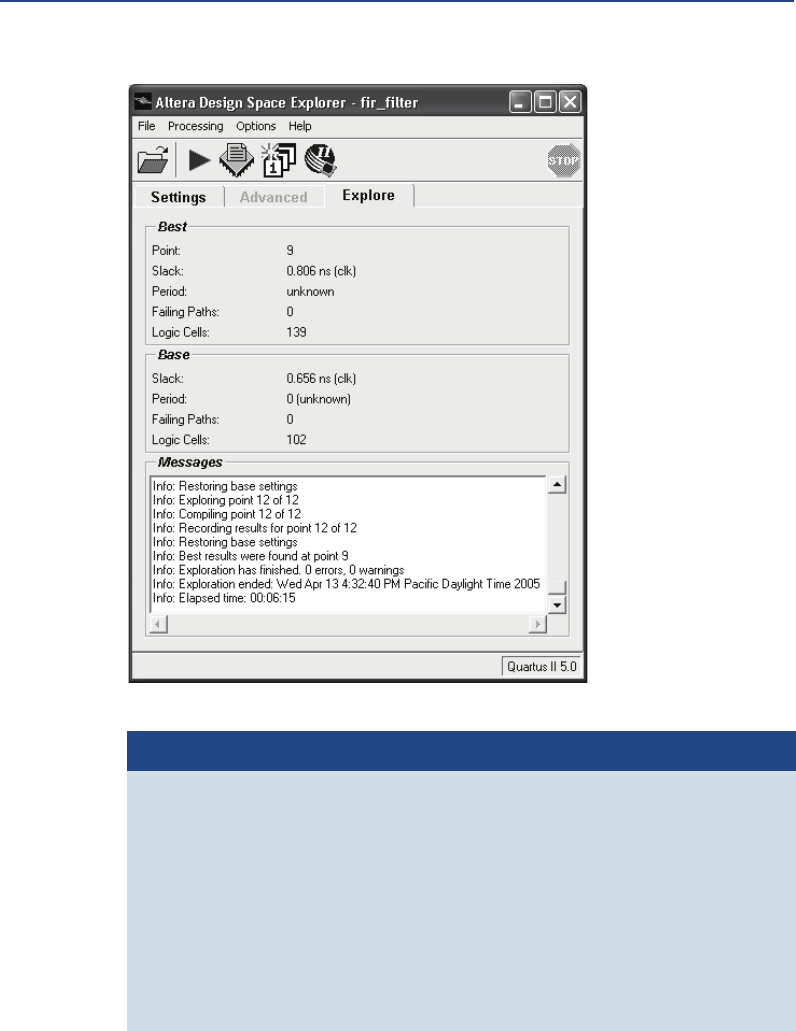

Figure 10. Explore Tab of Design Space Explorer
!
Running the Design Space Explorer
You can run DSE in graphical user interface mode by typing the following command
at a command prompt:
quartus_sh --dse
r\
You can run DSE in command-line mode by typing the following command at a
command prompt, along with any additional DSE options:
quartus_sh --dse -nogui <project name> [-c <revision name>]
r
For help on DSE options, type quartus_sh --help=dse r at command prompt, or
choose Show Documentation (Help menu) in the DSE window.
