Installing Hardware Options

MicroVAX 3100 Models 88/98 User Information

3-19

Installing the KZDDA

The KZDDA external SCSI option is installed in the bottom I/O slot. To install the

KZDDA option, refer to Figure 3-13 and follow these instructions:

1. Turn off the system, unplug the power cord and remove the cover.

2. Insert the module into the bottom slot of the I/O receiver, pressing it firmly into

place to seat the connection.

MLO-013627

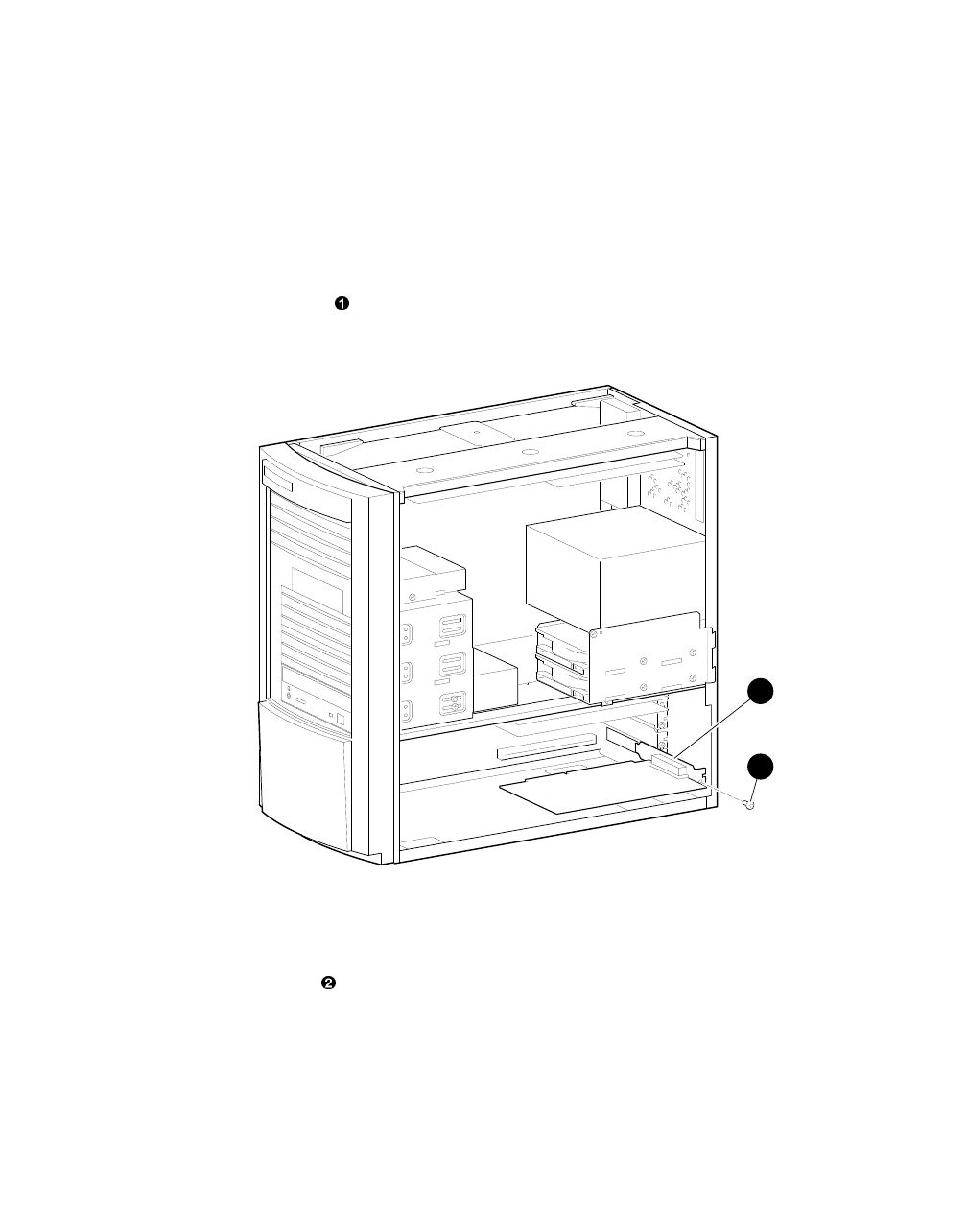

Figure 3-13 Installing the KZDDA External SCSI Option

3. Insert the screw through the option and into the I/O shelf as shown.

4. Attach external SCSI cable.

5. Close the cover, connect the power cord and plug it into the wall outlet.
