Installing Hardware Options

3-10

MicroVAX 3100 Models 88/98 User Information

ML013593

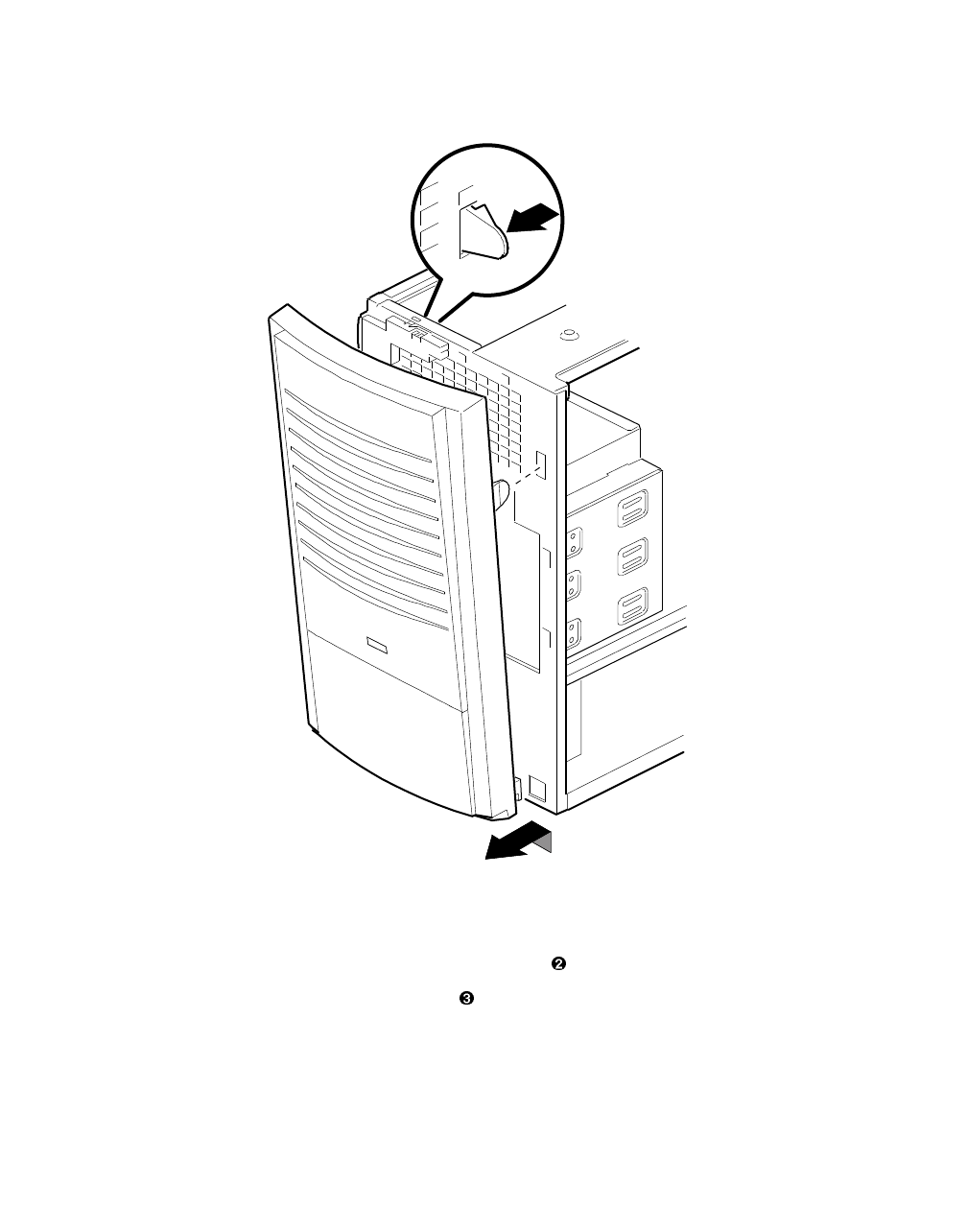

Figure 3-6 Removing the Front Bezel

4. Remove the EMI shield covering the slot you are filling by pushing it out from the

inside of the enclosure. Refer to Figure 3-7, Item .

5. Attach the drive rail, Figure 3-7, Item onto the device (or onto the mounted bracket

if you are installing a 3.5-inch device) using the screws provided.

6. Insert the rear of the device through the front of the bay and slide it rearward in the

bay, engaging the bay tabs onto the drive rail. If you are installing a non-removable

media device (such as a disk drive) seat it so that the front is flush with the front of the
